chartjs-chart-graph

This package does not declare an exports field, so the exports above have been automatically detected and optimized by JSPM instead. If any package subpath is missing, it is recommended to post an issue to the original package (chartjs-chart-graph) to support the "exports" field. If that is not possible, create a JSPM override to customize the exports field for this package.

Readme

Chart.js Graphs

Chart.js module for charting graphs. Adding new chart types: graph, forceDirectedGraph, dendogram, and tree.

Works only with Chart.js >= 2.8.0

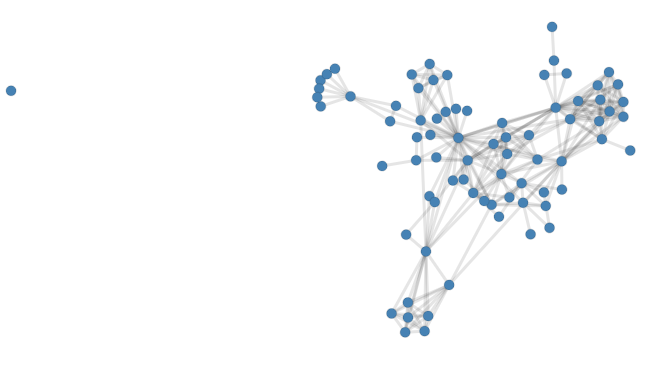

force directed

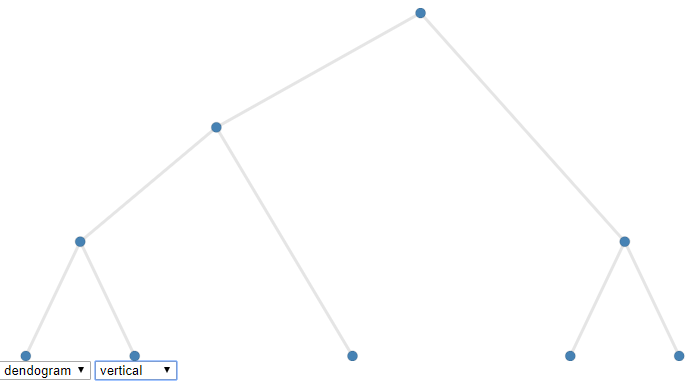

dendogram

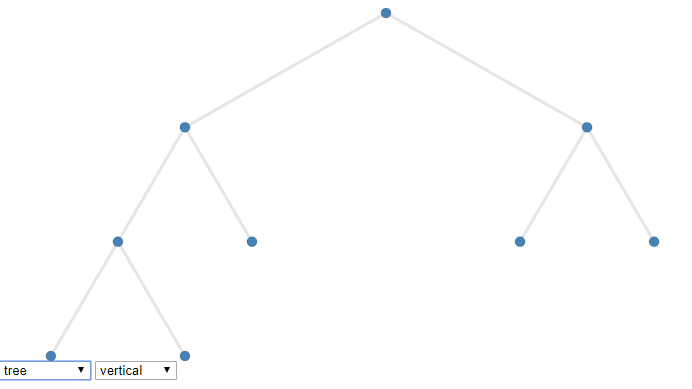

tree

Install

npm install --save chart.js chartjs-chart-graph

Usage

see Samples on Github

and CodePen

Styling

The new chart types are based on the existing line controller. Tho, instead of showing a line per dataset it shows edges as lines. Therefore, the styling options for points and lines are the same. See also https://www.chartjs.org/docs/latest/charts/line.html

Data Structure

data: {
  labels: ['A', 'B', 'C'], // node labels
  datasets: [{
    data: [ // nodes as objects
      { x: 1, y: 2 }, // x, y will be set by the force directed graph and can be omitted
      { x: 3, y: 1 },
      { x: 5, y: 3 }
    ],
    edges: [ // edge list where source/target refers to the node index
      { source: 0, target: 1},
      { source: 0, target: 2}
    ]
  }]
},

Force Directed Graph

chart type: forceDirectedGraph

Computes the x,y posiiton of nodes based on a force simulation. It is based on https://github.com/d3/d3-force/.

force directed

Options

interface IForceDirectedOptions {
  simulation: {
    /**
     * auto restarts the simulation upon dataset change, one can manually restart by calling: `chart.relayout()`
     *
     * @default true
     */
    autoRestart: boolean;

    forces: {
      /**
       * center force
       * https://github.com/d3/d3-force/#centering
       *
       * @default true
       */
      center: boolean | ICenterForce,

      /**
       * collision betweeen nodes
       * https://github.com/d3/d3-force/#collision
       *
       * @default false
       */
      collide: boolean | ICollideForce,

      /**
       * link force
       * https://github.com/d3/d3-force/#links
       *
       * @default true
       */
      link: boolean | ILinkForce,

      /**
       * link force
       * https://github.com/d3/d3-force/#many-body
       *
       * @default true
       */
      manyBody: boolean | IManyBodyForce,

      /**
       * x positioning force
       * https://github.com/d3/d3-force/#forceX
       *
       * @default false
       */
      x: boolean | IForceXForce,

      /**
       * y positioning force
       * https://github.com/d3/d3-force/#forceY
       *
       * @default false
       */
      y: boolean | IForceYForce,

      /**
       * radial positioning force
       * https://github.com/d3/d3-force/#forceRadial
       *
       * @default false
       */
      radial: boolean | IRadialForce,
    }
  }
}

declare ID3NodeCallback = (d: IDataNode, i: number) => number;
declare ID3EdgeCallback = (d: IDataEdge, i: number) => number;

interface ICenterForce {
  x?: number;
  y?: number;
}

interface ICollideForce {
  radius?: number | ID3NodeCallback;
  strength?: number | ID3NodeCallback;
}

interface ILinkForce {
  id?: (d: IDataEdge) => string | number;
  distance?: number | ID3EdgeCallback;
  strength?: number | ID3EdgeCallback;
}

interface IManyBodyForce {
  strength?: number | ID3NodeCallback;
  theta?: number;
  distanceMin?: number;
  distanceMax?: number;
}

interface IForceXForce {
  x?: number;
  strength?: number;
}

interface IForceYForce {
  y?: number;
  strength?: number;
}

interface IRadialForce {
  x?: number;
  y?: number;
  radius?: number;
  strength?: number;
}

Dendogram, Tree

chart types: dendogram, tree

The tree and dendograms layouts are based on https://github.com/d3/d3-hierarchy.

Dendogram

Tidy Tree tree

Options

interface ITreeOptions {
  tree: {
    /**
     * tree (cluster) or dendogram layout default depends on the chart type
     */
    mode: 'dendogram' | 'tree';
    /**
     * orientation of the tree layout
     * @default horizontal
     */
    orientation: 'horizontal' | 'vertical' | 'radial';
  }
}

Building

npm install
npm run build
