HollowDB

HollowDB is a decentralized privacy-preserving key-value database on Arweave network, powered by Warp Contracts.

HollowDB has two modus operandi: proofs and whitelisting. Both can be enabled together, or separately.

• When using proofs:

  • Anyone can read and put.
  • To update or remove a value at some key, user must provide a proof of preimage knowledge of that key.

• When using whitelisting:

  • Anyone can read.
  • To put, the user must have been whitelisted by the contract owner to do PUT operations.
  • To update or remove, the user must have been whitelisted by the contract owner to do UPDATE operations. There is no additional whitelist for remove since it is equivalent to updating a value as null.

The table below summarizes the requirements to make a transaction on HollowDB:

Installation

To install HollowDB:

# yarn
yarn add hollowdb
# npm
npm install hollowdb

Usage

HollowDB exposes the following:

• an SDK class to allow ease of development with its functionalities
• an Admin class that handles higher authorized operations.
• a Prover class that provides a utility function to generate proofs for HollowDB.
• a computeKey function to compute the key without generating a proof.

import {SDK, Admin} from 'hollowdb';
import type {HollowDbSdkArgs} from 'hollowdb';
import {WarpFactory} from 'warp-contracts';

const warp = WarpFactory.forMainnet();
const args: HollowDbSdkArgs = {
  jwk, // read a wallet
  contractTxId, // contract to connect to
  cacheType, // lmdb or redis
  warp, // mainnet, testnet, or local
};
const sdk = new SDK(args);
const admin = new Admin(args);

As shown in example, you must provide the 4 required arguments to Admin or SDK:

• jwk: your wallet, possibly read from disk in JSON format, or given in code. Make sure you .gitignore your wallet files!
• contractTxId: the transaction id of the contract. You can connect to an existing contract, or deploy one of your own and provide it's id here.
• cacheType: type of cache to be used, i.e. lmdb or redis.
  • if this is redis, then you must also provide a Redis client object via redisClient argument.
  • you can enable contract & state caching with the optional boolean arguments useContractCache and useStateCache; both are falsy by default.
  • you can specify a limitOptions object with the fields minEntriesPerContract and maxEntriesPerContract that specify a limit of sortKey caches per key.
• warp: the Warp instance to be used, could be for mainnet, testnet or local.

You can also provide the following optional arguments:

• useStateCache enables state cache, falsy by default.
• useContractCache enables state cache, falsy by default.
• limitOptions overrides the cache limit settings, it has two properties:
  • minEntriesPerContract defines the minimum number of keys to be stored (default 10)
  • maxEntriesPerContract defines the maximum number of keys to be stored (default 100)
  • after max is reach, max-min oldest keys are deleted, thus min many keys remain in the cache

SDK Operations

SDK provides the basic CRUD functionality.

// compute the key from your secret
const key = computeKey(yourSecret);

// GET is open to everyone
await sdk.get(key);

// PUT does not require a proof
await sdk.put(key, value);

// UPDATE with a proof
let {proof} = await prover.generateProof(keyPreimage, curValue, newValue);
await sdk.update(key, newValue, updateProof);

// UPDATE without a proof
await sdk.update(key, newValue);

// REMOVE with a proof
let {proof} = await prover.generateProof(keyPreimage, curValue, null);
await sdk.remove(key, proof);

// REMOVE without a proof
await sdk.remove(key);

// read state variables
const {cachedValue} = await sdk.readState();

For more detailed explanation on the Prover, see the related section below.

Admin Operations

The admin can change the contract state, but it does not have SDK functions in it as we don't expect the Admin to be used in such a way; Admin should only be instantiated when a major change such as changing the owner or the verification key is required.

// verification key is an object obtained from Circom & SnarkJS
await admin.setVerificationKey(verificationKey);

// newOwner is a JWK wallet object, to ensure that you have access to the new owner
await admin.setOwner(newOwner);

// proofs checking
await admin.setProofRequirement(false); // e.g. disables proof checking

// whitelisting
await admin.setWhitelistRequirement({
  put: true, // e.g. check for whitelist on PUT operations
  update: false, // but don't care for UPDATE & REMOVE operations
});

// add some user addresses to the PUT whitelist
await admin.addUsersToWhitelist([aliceAddr, bobAddr], 'put');

// remove someone from the whitelist
await admin.removeUsersFromWhitelist([bobAddr], 'put');

Building & deploying the contract

The contract is written in TypeScript, but to deploy using Warp you require the JS implementation, for which we use ESBuild. To build your contract, a shorthand script is provided within this repository:

yarn contract:build

This will generate the built contract under build/hollowDB/contract.js. To deploy this contract, you need an Arweave wallet. Download your wallet as JWK and save it under config/wallet folder. Afterwards, use the following script:

yarn contract:deploy <wallet-name>

This runs the deployment code under the tools folder, which internally uses the static deploy function of the Admin toolkit. It will use the wallet ./config/wallet/<wallet-name>.json with wallet-main as the default name.

Values larger than 2KB

Currently Warp Contracts only support transactions that are below 2KB in size. Since 2KB may not be sufficient for all use cases, we suggest using bundlr to upload your data to Arweave network, and only store the transaction ID within the contract.

In other words, you will store key, valueTxId instead of key, value! This will enable you to store arbitary amounts of data, and retrieve them with respect to their transaction ids, also while reducing the overall size of the contract.

We use such an approach in our HollowDB gRPC server, for more details please refer to this document.

Zero-Knowledge Proofs

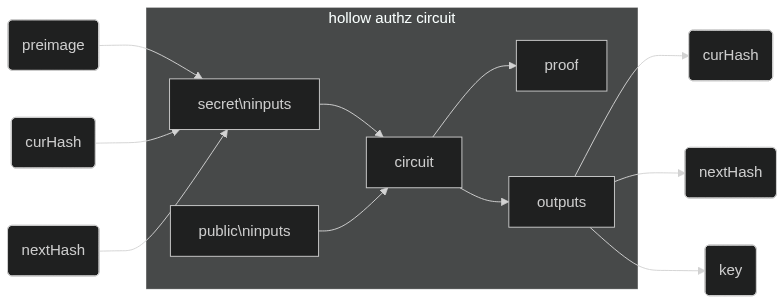

HollowDB is a key-value database where each key in the database is the Poseidon hash of some preimage. The client provides a "preimage knowledge proof" to update or remove a value at that key. Additional constraints on the current value and next value to be written are also given to the proof as a preventive measure against replay attacks and middle-man attacks.

As shown above, all inputs are secret for HollowDB prover, although curHash and nextHash are immediately provided as an output.

Generating Proofs with Prover

HollowDB provides a Prover class to ease the generation of proofs. First, you must make sure to have the circuit WASM file and prover key in your device, the paths to these files are required by the prover. Verification is done at the contract side, with the verification key being stored in the state of the contract itself.

You can obtain all these files from this repository:

• WASM Circuit: required by the Prover
• Prover Key: required by the Prover
• Verification Key: required by the contract if you would like to write your own

Here is how to use the prover class:

import {SDK, Prover, computeKey} from 'hollowdb';

// instantiate the SDK, shown above
// ...

// instantiate the prover
const wasmPath = '/some/path/to/hollow-authz.wasm';
const proverkeyPath = '/some/path/to/prover_key.zkey';
const prover = new Prover(wasmPath, proverkeyPath);

// your key preimage and values
const keyPreimage = BigInt(1122334455);
const curValue = 'previously-stored-value';
const newValue = 'new-awesome-value';

// generate the `fullProof` using Groth16, which has `proof` and `publicSignals`
// the name comes from SnarkJS's `fullProve` function
// values are hashed inside the `generateProof` function,
// so you don't have to worry about hashing yourself
let fullProof = await prover.generateProof(preimage, curValue, newValue);

// compute key
// you can also get this from fullProof.publicSignals[2]
const key = computeKey(preimage);

// get the actual proof object
const proof = fullProof.proof;

// update the value at this key!
await sdk.update(key, newValue, proof);

Proving in Browser

Since proof generation is using SnarkJS in the background, you might need to add some settings to your web app to run it. See the SnarkJS docs for this. For example, you could have an option like the following within your NextJS config file:

webpack: (config, { isServer }) => {
  if (!isServer) {
    config.resolve.alias = {
      ...config.resolve.alias,
      fs: false, // added for SnarkJS
      readline: false, // added for SnarkJS
    };
  }
  // added to run WASM for SnarkJS
  config.experiments = { asyncWebAssembly: true };
  return config;
},

Testing

There are Jest test suites for HollowDB operations that operate on a local Arweave instance using ArLocal. To run:

yarn test

The test will run for both LMDB cache and Redis cache. For Redis, you need to have a server running, with the URL that you specify within the Jest config.

Styling

We are using the Google TypeScript Style Guide.

# formatting with prettier
yarn format
# linting with eslint
yarn lint
